Lost in RAMslation

Meet DeceptiTech

DeceptiTech is a fast-growing cyber security company specializing in honeypot development and deception technologies. At the heart of their success are DeceptiPots - lightweight, powerful, and configurable honeypots that you can install on any OS and capture every malicious action!

The internal DeceptiTech network is organized around a traditional on-premises Active Directory domain with approximately 50 active users. The product platform, however, is isolated and hosted entirely in the AWS cloud.

One ordinary morning, DeceptiTech’s entire network collapsed. Within minutes, all critical on-premises systems were locked down and encrypted. The IT department hurried to restore backups, while the security team rushed to their SIEM - only to find the backups corrupted and all SIEM data wiped clean.

This room is about the third attack stage. As part of an external DFIR unit, can you help DeceptiTech perform a full-scope investigation and explain how the attack started?

Analysis Approach

A memory dump that corresponds to the server SRV-DMZ-GW with the name SRV-DMZ-GW-evidence.mem is available at /home/ubuntu/. If you operate from the analyst account, use sudo to access the dump.

Credentials

IP Address: MACHINE_IP
Connection: SSH or Split Screen
Username: analyst
Password: forensic

Tips and Tools

Threat actors tend to mimic system applications.
Volatility is installed in the analyst’s machine.

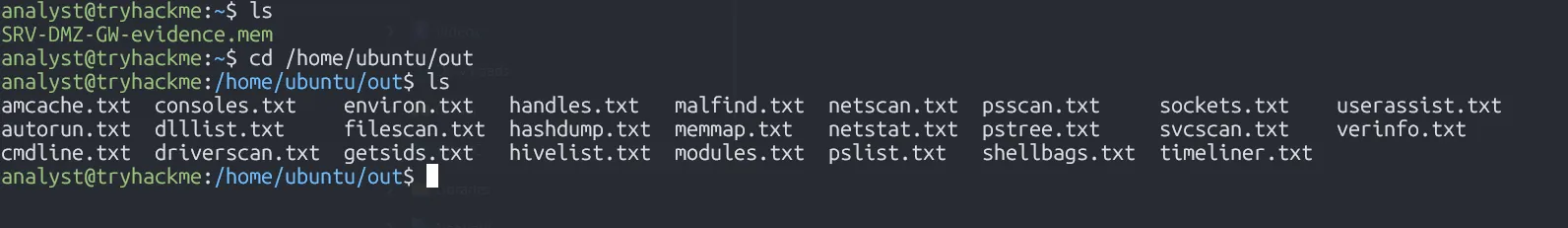

Some output has been prefetched in /home/ubuntu/out.

Environment & Evidence Prep

Connect to the target lab over SSH: ssh analyst@MACHINE_IP (password forensic).
This room did us the curiosity of having all of the relevant volatility dumps available at /home/ubuntu/out. We would have had to spend a good amount of time running various volatility3 commands to collect these txt dumps individually. Regardless, I will go through this walkthrough showing what we could do here if we didn’t have all the volatility /out/ *.txt files already given to us.
Stage the memory image (SRV-DMZ-GW-evidence.mem) in /home/ubuntu and make an output directory for Volatility exports: mkdir -p ~/out.
Run Volatility 3 modules against the image to collect artefacts mirroring the provided set:

vol.py -f SRV-DMZ-GW-evidence.mem windows.pstree.PsTree > ~/out/pstree.txt
vol.py -f SRV-DMZ-GW-evidence.mem windows.cmdline.CmdLine > ~/out/cmdline.txt
vol.py -f SRV-DMZ-GW-evidence.mem windows.malfind.Malfind > ~/out/malfind.txt
vol.py -f SRV-DMZ-GW-evidence.mem windows.netscan.NetScan > ~/out/netscan.txt

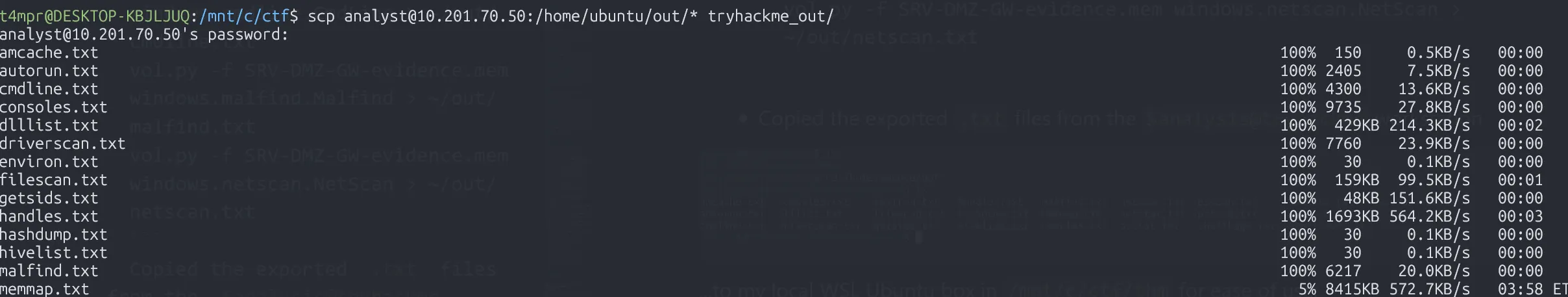

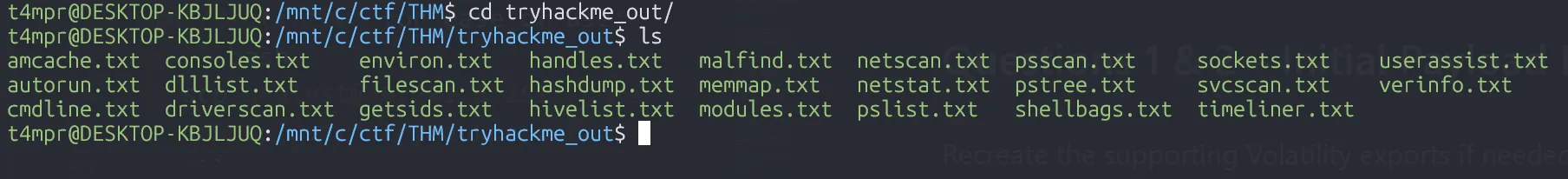

Next, I copied the exported .txt files from $analysis@tryhackme via SSH to my local WSL Ubuntu box in /mnt/c/ctf/thm for ease of use:

scp analyst@10.201.6.251:/home/ubuntu/out/* tryhackme_out/

Now I have all of the logs that I need to do a proper forensic investigation, comfortably on my own machine 🤓

Questions 1 & 2 – Initial Payload Execution

Recreate the supporting Volatility exports if needed:

vol.py -f SRV-DMZ-GW-evidence.mem windows.pstree.PsTree > ~/out/pstree.txt
vol.py -f SRV-DMZ-GW-evidence.mem windows.cmdline.CmdLine > ~/out/cmdline.txt

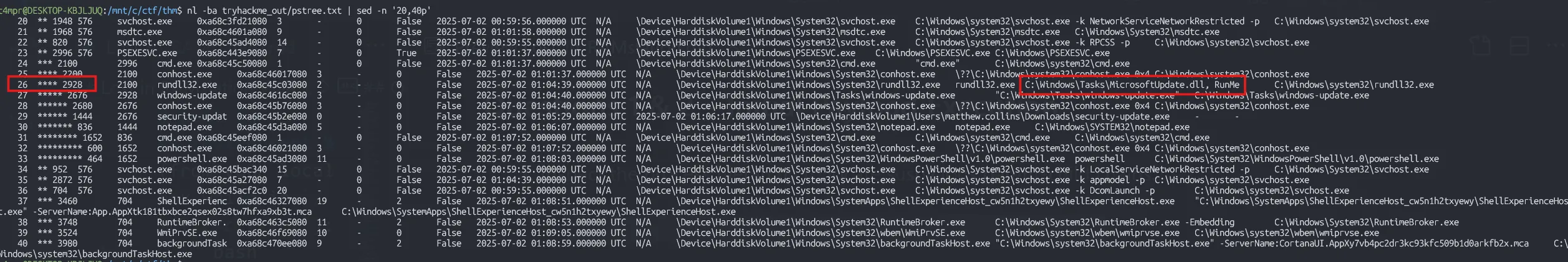

Inspect the process hierarchy to locate suspicious parent-child chains:

nl -ba tryhackme_out/pstree.txt | sed -n '20,40p'

This highlights the PsExec service (PSEXESVC.exe) spawning cmd.exe, which in turn launches rundll32.exe with the argument C:\Windows\Tasks\MicrosoftUpdate.dll, RunMe, pinpointing the first malicious payload.

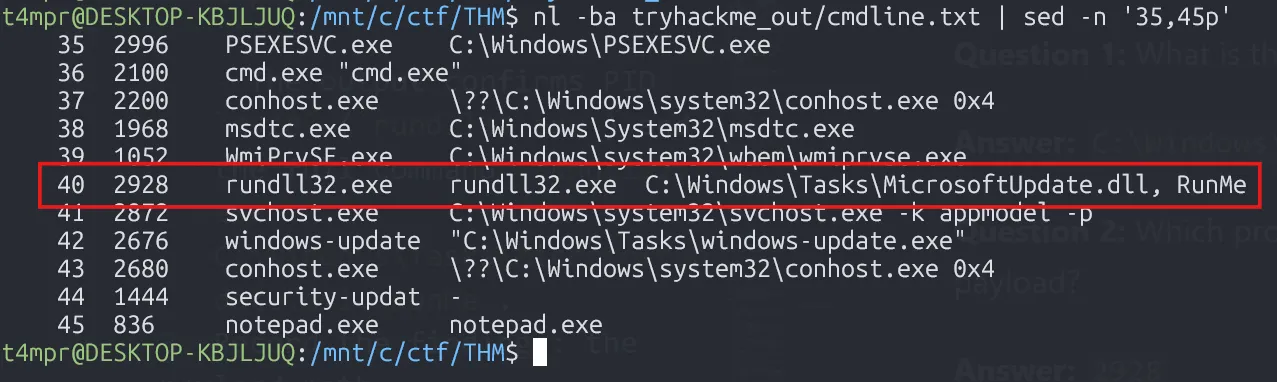

Validate the exact command line recorded for that process:

nl -ba tryhackme_out/cmdline.txt | sed -n '35,45p'

This is how we narrow a large dataset down to pinpoint exactly what we are looking for

The output confirms PID 2928 (rundll32.exe) and the full command rundll32.exe C:\Windows\Tasks\MicrosoftUpdate.dll, RunMe.

Record the findings: the payload path (C:\Windows\Tasks\MicrosoftUpdate.dll) and the executing process ID (2928).

Question 1: What is the absolute path to the initial malicious file executed on this host?
Answer: C:\Windows\Tasks\MicrosoftUpdate.dll

Question 2: Which process ID (PID) was assigned to the process used to execute the initial payload?
Answer: 2928

Question 3 – Command Line Execution

Generate the command-line listing if it is not already available:

vol.py -f SRV-DMZ-GW-evidence.mem windows.cmdline.CmdLine > ~/out/cmdline.txt

Filter the command-line dump for the suspicious rundll32.exe instance:

rg -n "rundll32.exe" tryhackme_out/cmdline.txt

The match shows the full command line captured from memory:

1
40:2928  rundll32.exe  rundll32.exe  C:\Windows\Tasks\MicrosoftUpdate.dll, RunMe

Based on our analysis, we conclude that the answer is: rundll32.exe C:\Windows\Tasks\MicrosoftUpdate.dll, RunMe.

Question 3: What was the full command line used by the attacker to launch initial execution on this host?
Answer: rundll32.exe C:\Windows\Tasks\MicrosoftUpdate.dll, RunMe

Question 4 – Final Process in the Chain

Regenerate the process tree if needed:

vol.py -f SRV-DMZ-GW-evidence.mem windows.pstree.PsTree > ~/out/pstree.txt

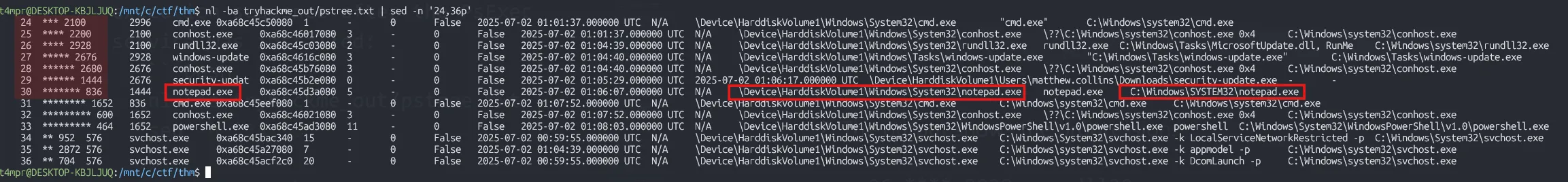

Revisit the process tree to map the execution sequence after the PsExec service was installed:

nl -ba tryhackme_out/pstree.txt | sed -n '24,36p'

The output shows the progression:

1
26 **** 2928  rundll32.exe  ...
2
27 ***** 2676  windows-update ...
3
29 ****** 1444 security-updat ...
4
30 ******* 836 notepad.exe ...

Note that notepad.exe (PID 836) is the last process started by the malicious chain before the attacker injected shellcode, so this is the final process name.

Question 4: The attack launched various processes. What is the name of the final process in the chain?
Answer: notepad.exe

Question 5 – Meterpreter Shellcode Bytes

Generate the malfind output if it is not already present:

vol.py -f SRV-DMZ-GW-evidence.mem windows.malfind.Malfind > ~/out/malfind.txt

Examine potential code injection inside the final process with malfind output:

sed -n '1,80p' tryhackme_out/malfind.txt

Identify the two notepad.exe entries and hone in on the larger allocation (line 34 in this case):

rg -n "^836" tryhackme_out/malfind.txt
sed -n '34,40p' tryhackme_out/malfind.txt

Take the first five byte values reported on that hexdump line (fc 48 89 ce 48), concatenate them without spaces, and convert to lowercase hex.

Question 5: What are the first five bytes (in hex) of the Meterpreter shellcode injected into it?
Answer: fc4889ce48

Question 6 – Lateral Movement

Generate the net scan report if required:

vol.py -f SRV-DMZ-GW-evidence.mem windows.netscan.NetScan > ~/out/netscan.txt

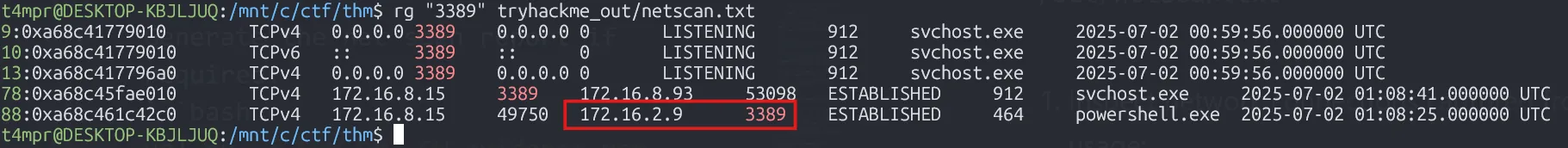

Inspect network connections captured from memory to identify RDP usage:

rg "3389" tryhackme_out/netscan.txt

Among the results, look for outbound connections where the destination port equals 3389. The entry shows the compromised host connecting to 172.16.2.9 over port 3389.

Question 6: Which is the IP address that the hosts perform a lateral movement using port 3389?
Answer: 172.16.2.9

Room Feedback

Question: How likely are you to recommend this room to others?
Answer: 9/10

Key Takeaways

Memory Forensics: Volatility 3 is essential for analyzing Windows memory dumps in DFIR investigations
Process Analysis: Understanding parent-child process relationships can reveal attack chains
PsExec Abuse: Legitimate tools like PsExec are commonly used by attackers for lateral movement
Shellcode Injection: Malfind plugin can identify injected code in process memory
Network Artifacts: NetScan can reveal lateral movement attempts and C2 connections
Threat Actor TTPs: Mimicking legitimate Windows update processes is a common evasion technique

This challenge provided hands-on experience with real-world incident response scenarios involving Active Directory compromise, lateral movement, and memory forensics analysis.
